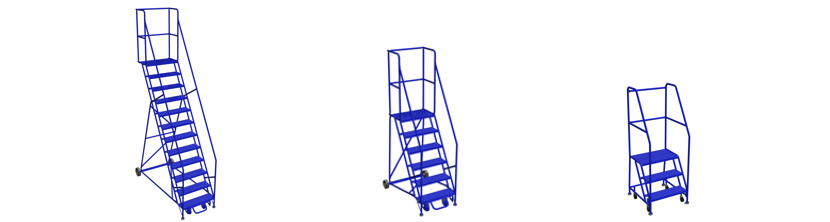

H Mobile Ladder Stand – With Handrails

Part No.	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
1H	1	9	24	28 x 18	35	3" Spring loaded, non-marking	18 x 28 x 51
2H	2	18	24	28 x 25	50	3" Spring loaded, non-marking	25 x 28 x 61
3H	3	27	24	28 x 30	60	3" Spring loaded, non-marking	30 x 28 x 70
4H	4	36	24	34 x 40	85	6" Polyolefin 5" Rubber Swivel	40 x 34 x 78
5H	5	45	24	34 x 46	95	6" Polyolefin 5" Rubber Swivel	46 x 34 x 87
6H	6	54	24	34 x 51	115	6" Polyolefin 5" Rubber Swivel	102 x 34 x 39
7H	7	63	24	34 x 56	125	6" Polyolefin 5" Rubber Swivel	110 x 34 x 39
8H	8	72	28	38 x 62	150	8" Polyolefin 5" Rubber Swivel	124 x 38 x 39
9H	9	81	28	38 x 68	170	8" Polyolefin 5" Rubber Swivel	136 x 38 x 39
10H	10	90	28	38 x 73	175	8" Polyolefin 5" Rubber Swivel	144 x 38 x 39
11H	11	99	28	38 x 78	180	8" Polyolefin 5" Rubber Swivel	155 x 38 x 39
12H	12	108	28	38 x 83	200	8" Polyolefin 5" Rubber Swivel	166 x 38 x 39
13H	13	117	28	38 x 88	215	8" Polyolefin 5" Rubber Swivel	177 x 38 x 39
14H	14	126	28	38 x 93	250	8" Polyolefin 5" Rubber Swivel	187 x 38 x 39
15H	15	135	28	38 x 98	260	8" Polyolefin 5" Rubber Swivel	197 x 38 x 39
16H	16	144	28	38 x 104	270	8" Polyolefin 5" Rubber Swivel	208 x 38 x 39
17H	17	153	28	46 x 109	315	8" Polyolefin 5" Rubber Swivel	219 x 46 x 39
18H	18	162	28	46 x 114	325	8" Polyolefin 5" Rubber Swivel	229 x 46 x 39
19H	19	171	28	46 x 119	345	8" Polyolefin 5" Rubber Swivel	240 x 46 x 39
20H	20	180	28	46 x 125	355	8" Polyolefin 5" Rubber Swivel	249 x 46 x 39

Details

• Standard 60° climbing angle
• 42” high handrail
• 1" x 16 ga. round tube construction
• Heavy duty all-welded construction
• 15" platform depth
• Steps are 7-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
• Positive floor locking trip step mechanism on 4H and up
• Kickplates standard on 14H and up
• 1H – 5H ship fully assembled
• 6H – 20H ship knocked down, with minimal assembly required
• Durable blue powder coat finish

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 400 lbs (one person only) steel and stainless steel

Optional Features:

• Diamond Channel Grating Treads
• Front or Side Walk-through (comes with safety chains or gate)
• Fold-down handrail
• Extended Platform
• Tool Tray
• Stainless Steel
• Vertical Pickets
• Gate
• Inboard Axle
• Kickplates below 14 Step

Parts:

CAS-3TPR-SET (1H - 3H ladders)	CAS-5RSX-TS (4H - 20H)	WHL-6PO (4H - 7H ladders)
WHL-8PO (8H - 20H ladders)	COM-RP-2534 (H ladders)
