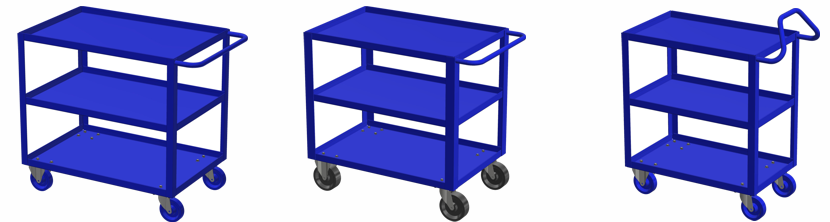

Three-Shelf Service Carts

Details:

• Heavy duty all-welded construction
• 14 ga. Steel trays with 1-1/2" lip up
• 12-1/8" clearance between shelves
• Two swivel and two rigid casters
• 1" dia. tube push handle at top shelf on swivel end
• Durable blue powder coat finish

Optional Features:

• Locking swivel casters
• Shelves lip down
• Corner Bumpers can be quoted on request
• Custom Sizes can be quoted on request

Three Shelf Service Cart

• Standard sizes range from 16x30 to 30x60
• 1-1/2" x 1-1/2" x 1/8" angle corner posts
• 1,000 to 1,500 lb. capacity

Part No.	Shelf Size	Overall Height (in.)	Weight (lbs.)	Capacity (lbs.)	Caster Size	Caster Type	Shelf Clearance	Shipping Size (in.) L x W x H
16x30SC3-5RSX	16x30	35	66	1000	5 x 1-1/4	Elastic Rubber	12-3/16	36 x 16 x 35
18x24SC3-5RSX	18x24	35	61	1000	5 x 1-1/4	Elastic Rubber	12-3/16	30 x 18 x 35
18x30SC3-5RSX	18x30	35	68	1000	5 x 1-1/4	Elastic Rubber	12-3/16	36 x 18 x 35
18x36SC3-5RSX	18x36	35	79	1000	5 x 1-1/4	Elastic Rubber	12-3/16	42 x 18 x 35
20x36SC3-5RSX	20x36	35	85	1000	5 x 1-1/4	Elastic Rubber	12-1/8	42 x 20 x 35
20x36SC3-8PN	20x36	39	102	1200	8 x 2-1/2	Pneumatic	12-3/16	42 x 20 x 39
20x43SC3-5RSX	20x43	35	94	1000	5 x 1-1/4	Elastic Rubber	12-3/16	49 x 20 x 35
20x43SC3-8PN	20x43	39	111	1200	8 x 2-1/2	Pneumatic	12-3/16	49 x 20 x 39
24x36SC3-5RSX	24x36	35	94	1000	5 x 1-1/4	Elastic Rubber	12-3/16	42 x 24 x 35
24x36SC3-8PN	24x36	39	112	1200	8 x 2-1/2	Pneumatic	12-3/16	42 x 24 x 39
24x36SC3-10PN	24x36	42	116	1500	10 x 3-1/2	Pneumatic	12-3/16	42 x 24 x 42
24x42SC3-5RSX	24x42	35	108	1000	5 x 1-1/4	Elastic Rubber	12-1/8	48 x 24 x 35
24x42SC3-8PN	24x42	39	125	1200	8 x 2-1/2	Pneumatic	12-3/16	48 x 24 x 39
24x42SC3-10PN	24x42	42	129	1500	10 x 3-1/2	Pneumatic	12-3/16	48 x 24 x 42
24x48SC3-5RSX	24x48	35	116	1000	5 x 1-1/4	Elastic Rubber	12-1/8	54 x 24 x 35
24x48SC3-8PN	24x48	39	132	1200	8 x 2-1/2	Pneumatic	12-1/8	54 x 24 x 39
24x48SC3-10PN	24x48	42	136	1500	10 x 3-1/2	Pneumatic	12-3/16	54 x 24 x 42
30x60SC3-5RSX	30x60	35	164	1000	5 x 1-1/4	Elastic Rubber	12-3/16	66 x 30 x 35
30x60SC3-8PN	30x60	39	180	1200	8 x 2-1/2	Pneumatic	12-3/16	66 x 30 x 39
30x60SC3-10PN	30x60	42	184	1500	10 x 3-1/2	Pneumatic	12-3/16	66 x 30 x 42

Extra Heavy Duty Three-Shelf Service Cart

• Standard sizes include 24x36, 24x48, 30x60
• 2" x 2" x 3/16" angle corner posts
• 2,000 lb. capacity

Part No.	Shelf Size	Overall Height (in.)	Weight (lbs.)	Capacity (lbs.)	Caster Size	Caster Type	Shelf Clearance	Shipping Size (in.) L x W x H
24x36SCHD3-6CIC	24x36	37	120	2000	6 x 2	Crown Cast Iron	12-3/16	42 x 24 x 37
24x36SCHD3-6PH	24x36	37	101	2000	6 x 2	Phenolic	12-3/16	42 x 25 x 37
24x48SCHD3-6CIC	24x48	37	141	2000	6 x 2	Crown Cast Iron	12-3/16	54 x 24 x 37
24x48SCHD3-6PH	24x48	37	115	2000	6 x 2	Phenolic	12-3/16	54 x 24 x 37
30x60SCHD3-6CIC	30x60	37	165	2000	6 x 2	Crown Cast Iron	12-3/16	66 x 31 x 37
30x60SCHD3-6PH	30x60	37	131	2000	6 x 2	Phenolic	12-3/16	66 x 31 x 37

Ergo Three Shelf Service Cart

• Standard sizes include 18x30, 24x36, 24x42
• Ergonomic push handle provides optimum control and comfort
• 1-1/2" x 1-1/2" x 1/8" angle corner posts
• 1,500 lb. capacity

Part No.	Shelf Size	Overall Height (in.)	Weight (lbs.)	Capacity (lbs.)	Caster Size	Caster Type	Shelf Clearance	Shipping Size (in.) L x W x H
18x30SC3-5RSX-ERGO	18x30	35	68	1500	5 x 1-1/4	Elastic Rubber	12-3/16	36 x 18 x 42
24x36SC3-5RSX-ERGO	24x36	35	94	1500	5 x 1-1/4	Elastic Rubber	12-3/16	42 x 24 x 42
24x42SC3-5RSX-ERGO	24x42	35	108	1500	5 x 1-1/4	Elastic Rubber	12-3/16	48 x 24 x 42

Parts:

CAS-5RSX-RG	CAS-5RSX-SW	CAS-5RSX-SW-TLB
CAS-6CIC-RG	CAS-6CIC-SW	CAS-6CIC-SW-TLB
CAS-6PH-RG	CAS-6PH-SW	CAS-6PH-SW-TLB
CAS-8PN-RG	CAS-8PN-SW	CAS-8PN-SW-BR
CAS-10PN-RG	CAS-10PN-SW	CAS-10PN-SW-BR
COM-CB
