Crossover Access Ladder (HCO-60°) and (SHCO – 50°)

Part No.	Description	No. of Steps Including Platform	Platform Size (in.)	Clearance (in.)	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Shipping Size (in.) L x W x H
4HCO-30	4 Step 60° Crossover Ladder	4	24 x 30	34-1/2 x 12-15/16	36	24	29 x 63	150	96 x 40 x 49
4HCO-45	4 Step 60° Crossover Ladder	4	24 x 45	34-5/8 x 27-15/16	36	24	29 x 78	165	96 x 40 x 55
4HCO-60	4 Step 60° Crossover Ladder	4	24 x 60	34-5/8 x 42-15/16	36	24	29 x 93	184	108 x 40 x 62
5HCO-30	5 Step 60° Crossover Ladder	5	24 x 30	43-5/8 x 13	45	24	29 x 74	165	108 x 40 x 47
5HCO-45	5 Step 60° Crossover Ladder	5	24 x 45	43-5/8 x 28	45	24	29 x 89	183	108 x 40 x 55
5HCO-60	5 Step 60° Crossover Ladder	5	24 x 60	43-5/8 x 42-1/2	45	24	29 x 103	201	120 x 40 x 62
6HCO-30	6 Step 60° Crossover Ladder	6	24 x 30	52-5/8 x 12-15/16	54	24	29 x 84	181	120 x 40 x 47
6HCO-45	6 Step 60° Crossover Ladder	6	24 x 45	52-5/8 x 27-15/16	54	24	29 x 99	199	120 x 40 x 55
6HCO-60	6 Step 60° Crossover Ladder	6	24 x 60	52-5/8 x 42-7/16	54	24	29 x 114	218	132 x 40 x 62

Part No.	Description	No. of Steps Including Platform	Platform Size (in.)	Clearance (in.)	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Shipping Size (in.) L x W x H
4SHCO-30	4 Step 50° Safety Angle Crossover Ladder	4	24 x 30	38-5/8 x 9-3/8	40	24	29 x 83	161	96 x 40 x 49
4SHCO-45	4 Step 50° Safety Angle Crossover Ladder	4	24 x 45	38-5/8 x 24-7/16	40	24	29 x 98	179	108 x 40 x 57
4SHCO-60	4 Step 50° Safety Angle Crossover Ladder	4	24 x 60	38-5/8 x 38-7/8	40	24	29 x 112	198	120 x 40 x 62
5SHCO-30	5 Step 50° Safety Angle Crossover Ladder	5	24 x 30	48-5/8 x 9-3/8	50	24	29 x 100	181	120 x 40 x 49
5SHCO-45	5 Step 50° Safety Angle Crossover Ladder	5	24 x 45	48-5/8 x 24-3/8	50	24	29 x 115	199	120 x 40 x 55
5SHCO-60	5 Step 50° Safety Angle Crossover Ladder	5	24 x 60	48-5/8 x 38-7/8	50	24	29 x 129	218	132 x 40 x 62
6SHCO-30	6 Step 50° Safety Angle Crossover Ladder	6	24 x 30	58-5/8 x 9-3/8	60	24	29 x 117	201	132 x 40 x 49
6SHCO-45	6 Step 50° Safety Angle Crossover Ladder	6	24 x 45	58-5/8 x 24-3/8	60	24	29 x 132	219	132 x 40 x 57
6SHCO-60	6 Step 50° Safety Angle Crossover Ladder	6	24 x 60	58-5/8 x 38-7/8	60	24	29 x 146	237	144 x 40 x 62

Provides safe walkway over conveyors, machinery, pipes, and other obstacles

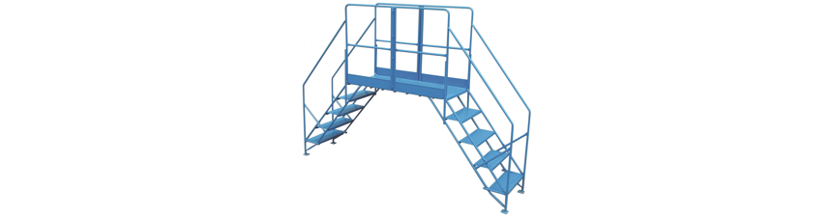

HCO Standard Crossover Access Ladder

• Standard 60° climbing angle
• Steps are 7-1/2" deep, non-slip, raised, perforated, dimpled tread pattern

SHCO Safety Angle Crossover Access Ladder

• 50° safety angle allows user to face forward while descending
• Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern

Details:

• Provides safe walkway access over conveyors, machinery, pipes, and other obstacles
• Standard platform depths are 30”, 45” or 60” Long by 24” wide
• Predrilled Foot Pads for 3/8” diameter anchors
• 42” high handrail
• 1" x 16 ga. round tube construction
• Heavy duty all-welded construction
• Ships in two pieces, on skids, easily bolts together
• Durable blue powder coat finish

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 400 lbs (one person only)
