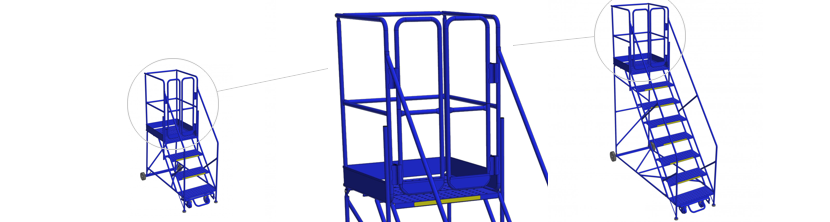

SGH Safeguard Mobile Ladder Stand

Part No.	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
3SGH	3	30	24	34 x 55	130	6" Performa Rubber 5" Rubber Swivel	55 x 34 x 72
4SGH	4	40	24	34 x 64	155	6" Performa 5" Rubber Swivel	63 x 34 x 82
5SGH	5	50	24	34 x 73	170	6" Performa 5" Rubber Swivel	69 x 34 x 92
6SGH	6	60	24	34 x 80	185	6" Performa 5" Rubber Swivel	124 x 34 x 56
7SGH	7	70	24	34 x 86	210	6" Performa 5" Rubber Swivel	137 x 34 x 56
8SGH	8	80	28	38 x 98	240	8" Cushion Rubber 5" Rubber Swivel	150 x 38 x 60
9SGH	9	90	28	38 x 105	270	8" Cushion Rubber 5" Rubber Swivel	162 x 38 x 60
10SGH	10	100	28	38 x 115	295	8" Cushion Rubber 5" Rubber Swivel	176 x 38 x 60
11SGH	11	110	28	38 x 123	315	8" Cushion Rubber 5" Rubber Swivel	189 x 38 x 60
12SGH	12	120	28	38 x 132	335	8" Cushion Rubber 5" Rubber Swivel	203 x 38 x 60
13SGH	13	130	28	38 x 140	355	8" Cushion Rubber 5" Rubber Swivel	216 x 38 x 60
14SGH	14	140	28	38 x 148	380	8" Cushion Rubber 5" Rubber Swivel	229 x 38 x 60
15SGH	15	150	28	46 x 157	405	8" Cushion Rubber 5" Rubber Swivel	242 x 46 x 60
16SGH	16	160	28	46 x 165	430	8" Cushion Rubber 5" Rubber Swivel	255 x 46 x 60

Details

• Fully enclosed platform with self-closing double gates at entrance to the platform provides user a safe work area
• 50O safety angle ladder allows user to face forward while descending
• 42” high handrail
• 1" x 16 ga. round tube construction
• Heavy duty all-welded construction
• 28-1/2" platform depth
• Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
• Positive floor locking trip step mechanism
• Kickplates standard on all sides including gate
• Reflective yellow stickers on each tread for better visibility
• Bilingual safety labels
• 3SGH – 5SGH ship fully assembled; 6SGH – 16SGH ship knocked down
• Durable blue powder coat finish

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 400 lbs (one person only)

Parts:

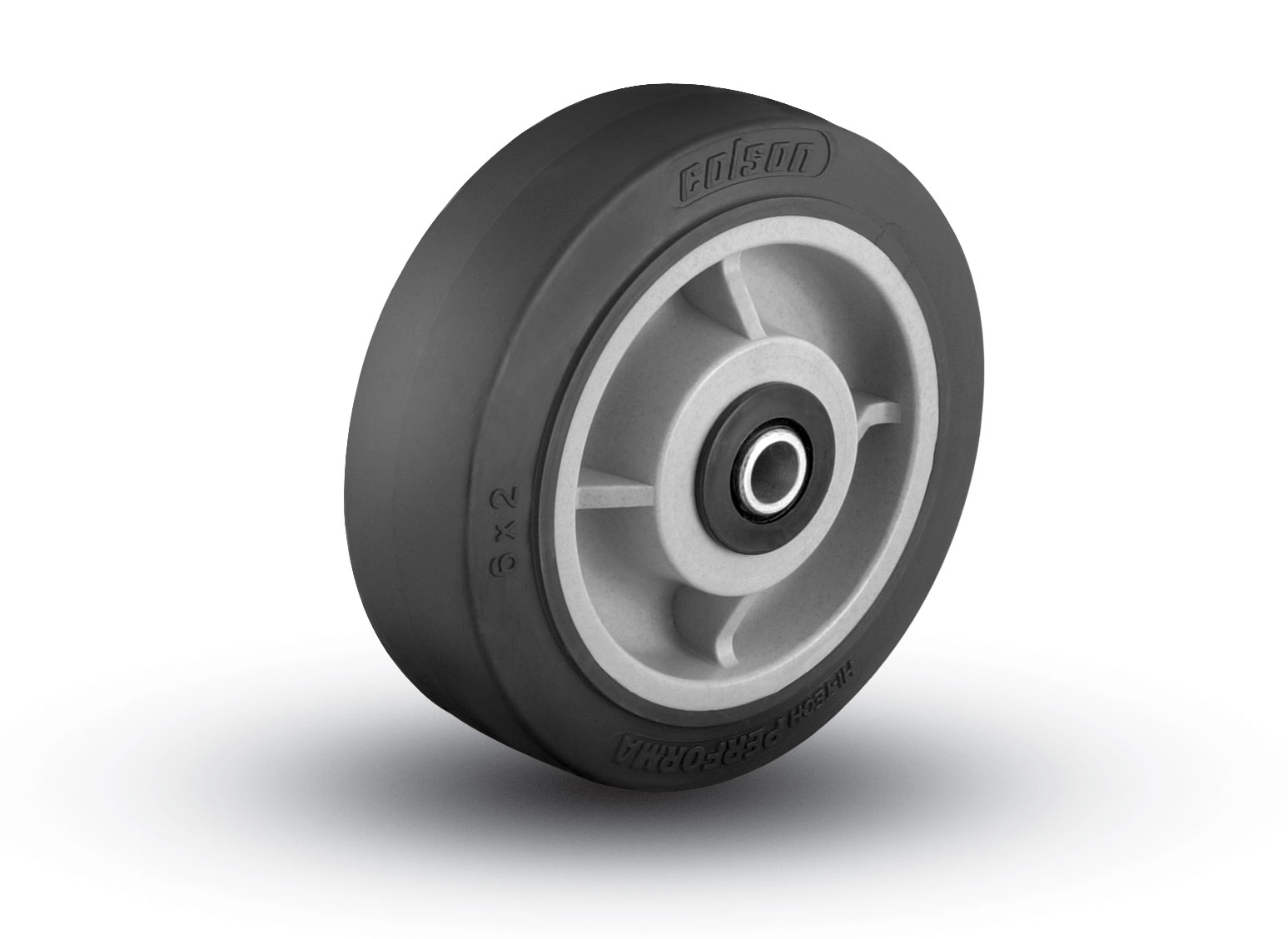

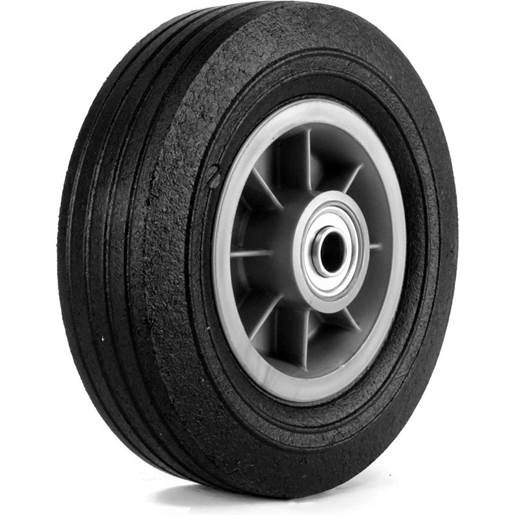

CAS-5RSX-TS	WHL-6PR (4SH-7SH ladders)	WHL-8C (8SH – 16SH ladders)

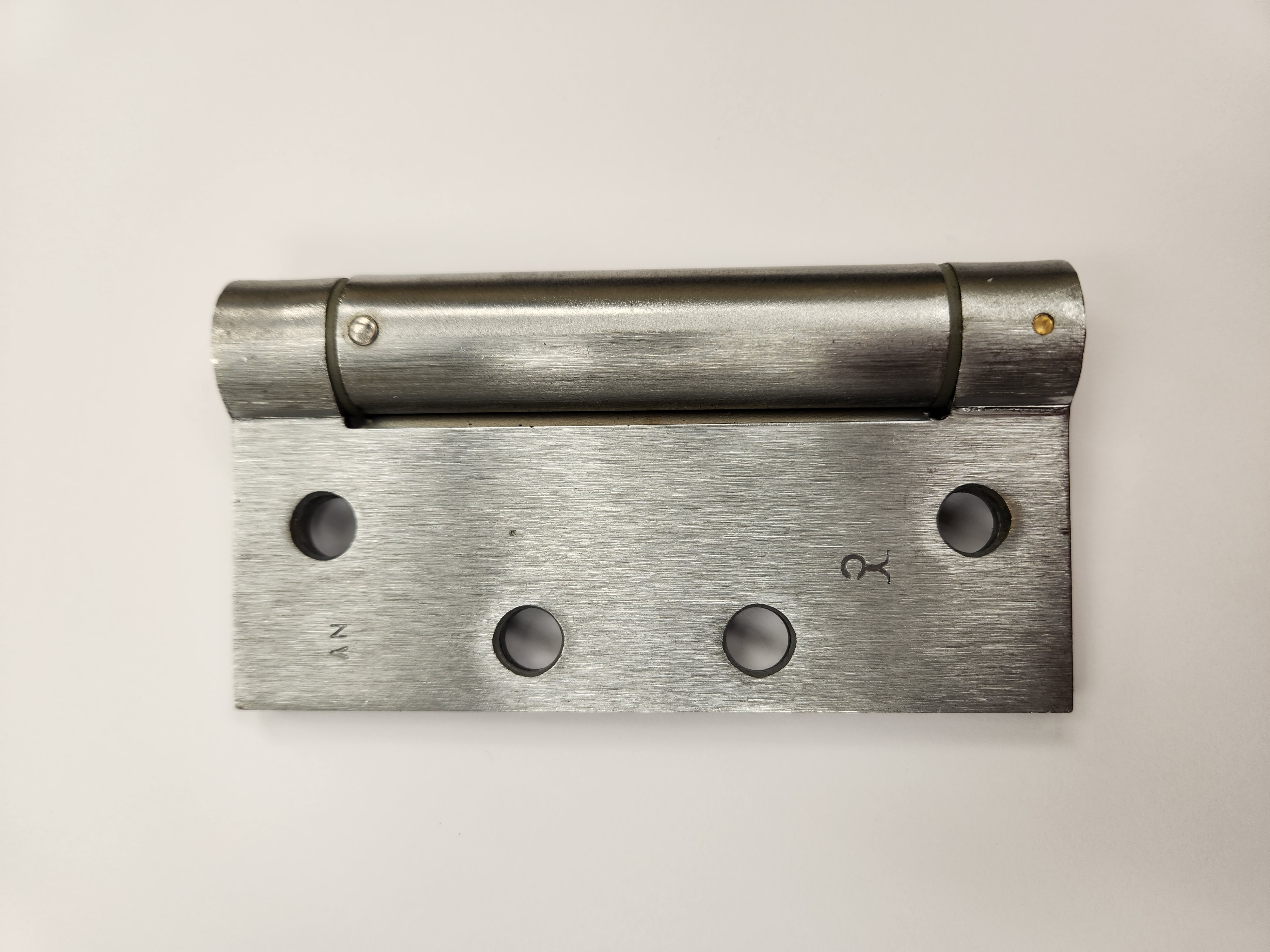

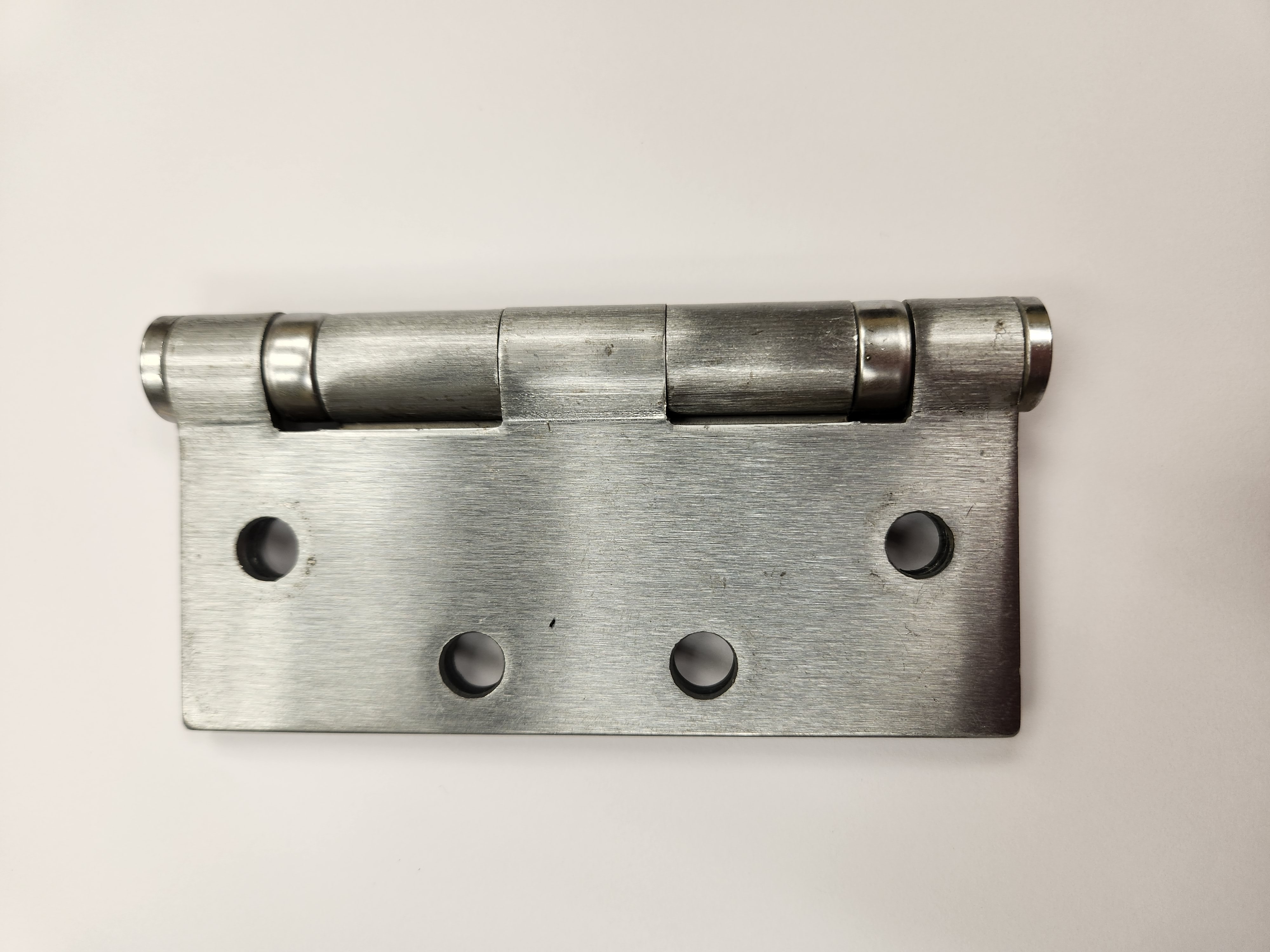

COM-RP-2534	COM-4" HINGE	COM-4" SPRING HINGE
COM-SPRING HINGE TENSION PIN
