TR – Tilt and Roll

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
2NH-TR	2 Step 60° Tilt and Roll Mobile Ladder Stand -no handrail	2	18	24	33 x 25	37	5" Rubber	25 x 33 x 43

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
2H-TR	2 Step 60° Tilt and Roll Mobile Ladder Stand	2	18	24	28 x 38	51	5" Rubber	38 x 28 x 61
3H-TR	3 Step 60° Tilt and Roll Mobile Ladder Stand	3	27	24	28 x 43	65	5" Rubber	43 x 28 x 70
4H-TR	4 Step 60° Tilt and Roll Mobile Ladder Stand	4	36	24	28 x 48	80	5" Rubber	48 x 28 x 78
5H-TR	5 Step 60° Tilt and Roll Mobile Ladder Stand	5	45	24	28 x 54	95	5" Rubber	54 x 28 x 87
6H-TR	6 Step 60° Tilt and Roll Mobile Ladder Stand	6	54	24	28 x 55	110	5" Rubber	55 x 28 x 96

Tilt and roll into position

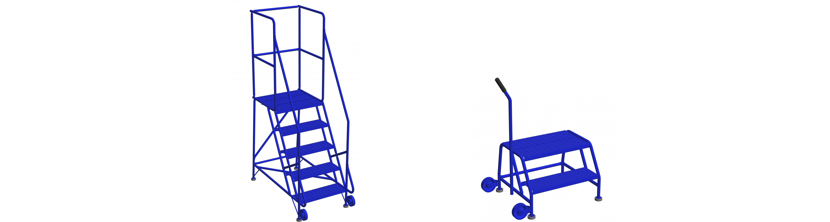

H-TR Standard Tilt and Roll

• Tilt and roll into position
• 42” high handrail
• 24” wide x 22 ½” extra-large platform

NH-TR – No handrail Tilt and Roll with handle

• 2 step ladder with platform
• Single 43” upright handle allows for easy maneuvering of ladder
• 5” x 1 ¼” rubber rigid wheels mounted on left side
• 24” wide x 15” platform

Details

• Tilt and roll into position
• Standard 60° climbing angle
• 1" x 16 ga. round tube construction
• Heavy duty all-welded construction
• 24” wide steps are 7-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
• Ladder rolls on two 5” diameter rubber wheels
• Rests on four 2 ½” diameter rubber pads to secure ladder to floor during use
• 2 step – 5 step ship fully assembled; 6 step ships knocked down with minimal assembly required
• Durable blue powder coat finish

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 400 lbs (one person only)

Parts:

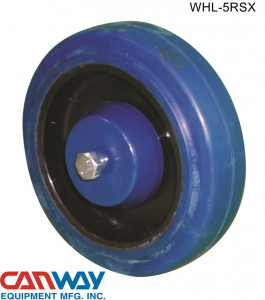

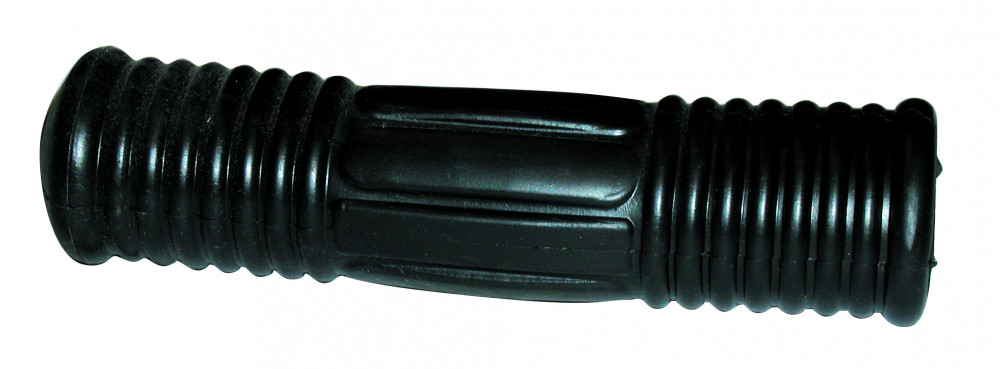

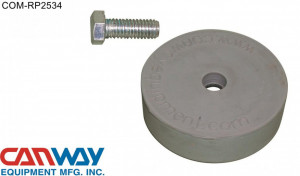

WHL-5RSX	COM-RP-2534 (SH ladders)	COM-GH1
