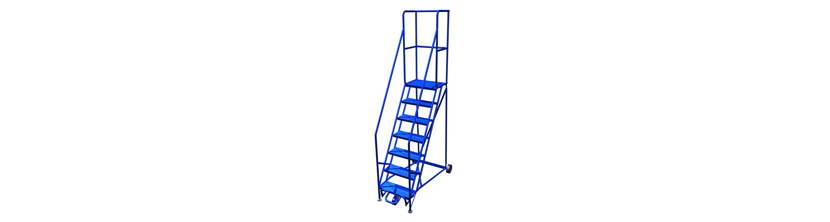

H-20 Ladders – Narrow Aisle

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
3H-20	3 Step 60° Narrow Aisle Mobile Ladder Stand	3	27	20	24 x 31	55	3" Spring loaded, non-marking	31 x 24 x 69
4H-20	4 Step 60° Narrow Aisle Mobile Ladder Stand	4	36	20	30-1/4 x 39	80	6" Polyolefin 5" Rubber Swivel	39 x 31 x 78
5H-20	5 Step 60° Narrow Aisle Mobile Ladder Stand	5	45	20	30-1/4 x 46	90	6" Polyolefin 5" Rubber Swivel	46 x 31 x 87
6H-20	6 Step 60° Narrow Aisle Mobile Ladder Stand	6	54	20	30-1/4 x 50	110	6" Polyolefin 5" Rubber Swivel	102 x 31 x 39
7H-20	7 Step 60° Narrow Aisle Mobile Ladder Stand	7	63	20	30-1/4 x 56	115	6" Polyolefin 5" Rubber Swivel	110 x 31 x 39
8H-20	8 Step 60° Narrow Aisle Mobile Ladder Stand	8	72	20	30-1/4 x 62	120	8" Polyolefin 5" Rubber Swivel	124 x 31 x 39
9H-20	9 Step 60° Narrow Aisle Mobile Ladder Stand	9	81	20	30-1/4 x 68	135	8" Polyolefin 5" Rubber Swivel	136 x 31 x 39
10H-20	10 Step 60° Angle Narrow Aisle Mobile Ladder Stand	10	90	20	30-1/4 x 73	142	8" Polyolefin 5" Rubber Swivel	144 x 31 x 39

Details:

• Narrow rolling ladder allows user to navigate through narrow aisles
• Maximum width of 30 ¼"
• Standard 60O climbing angle
• 42" high handrail
• 1" x 16 ga. round tube construction
• Heavy duty all-welded construction
• 15" platform depth
• Steps are 7-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
• Positive locking trip step mechanism on 4H-20 and up; 3H-20 has four 3" spring-loaded casters
• 400 lb. capacity
• 3H-20 – 5H-20 ship fully assembled
• 6H-20 and up ship knocked down with very minimal assembly required
• Durable blue powder coat finish

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 400 lbs (one person only)

Optional Features:

• Diamond Channel Grating Treads
• Front Walk-through (comes with safety chains or gate)
• Extended Platform
• Tool Tray
• Stainless Steel
• Vertical Pickets
• Gate
• Inboard Axle

Parts:

CAS-3TPR-SET (3 step)	CAS-5RSX-TS (4 step and up)	WHL-6PO (3 step – 7 step)
WHL-8PO (8 step and up)	COM-RP-2534
