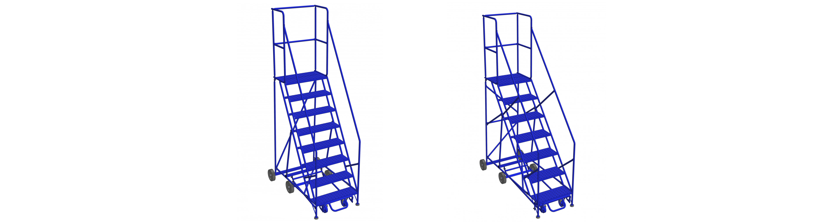

RIP Ladders – Rotate in Place 60° (HR) and 50°(SHR)

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
6HR	6 Step 60° RIP Mobile Ladder Stand	6	54	24	34 x 52	165	8" Polyolefin 5" Rubber Swivel	103 x 36 x 37
7HR	7 Step 60° RIP Mobile Ladder Stand	7	63	24	36 x 56	180	8" Polyolefin 5" Rubber Swivel	110 x 36 x 37
8HR	8 Step 60° RIP Mobile Ladder Stand	8	72	28	38 x 62	205	8" Polyolefin 5" Rubber Swivel	125 x 38 x 37
9HR	9 Step 60° RIP Mobile Ladder Stand	9	81	28	38 x 68	220	8" Polyolefin 5" Rubber Swivel	136 x 38 x 37
10HR	10 Step 60° RIP Mobile Ladder Stand	10	90	28	38 x 73	240	8" Polyolefin 5" Rubber Swivel	147 x 38 x 39
11HR	11 Step 60° RIP Mobile Ladder Stand	11	99	28	38 x 78	255	8" Polyolefin 5" Rubber Swivel	157 x 38 x 39
12HR	12 Step 60° RIP Mobile Ladder Stand	12	108	28	38 x 83	270	8" Polyolefin 5" Rubber Swivel	166 x 38 x 39
13HR	13 Step 60° RIP Mobile Ladder Stand	13	117	28	38 x 88	290	8" Polyolefin 5" Rubber Swivel	177 x 38 x 39

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
6SHR	6 Step 50° RIP Safety Angle Mobile Ladder Stand	6	60	24	34 x 72	190	8" Polyolefin 5" Rubber Swivel	118 x 34 x 41
7SHR	7 Step 50° RIP Safety Angle Mobile Ladder Stand	7	70	24	34 x 80	215	8" Polyolefin 5" Rubber Swivel	137 x 37 x 41
8SHR	8 Step 50° RIP Safety Angle Mobile Ladder Stand	8	80	28	38 x 89	240	8" Polyolefin 5" Rubber Swivel	144 x 38 x 41
9SHR	9 Step 50° RIP Safety Angle Mobile Ladder Stand	9	90	28	38 x 97	265	8" Polyolefin 5" Rubber Swivel	157 x 38 x 41
10SHR	10 Step 50° RIP Safety Angle Mobile Ladder Stand	10	100	28	38 x 105	290	8" Polyolefin 5" Rubber Swivel	170 x 38 x 41
11SHR	11 Step 50° RIP Safety Angle Mobile Ladder Stand	11	110	28	38 x 114	315	8" Polyolefin 5" Rubber Swivel	183 x 38 x 41
12SHR	12 Step 50° RIP Safety Angle Mobile Ladder Stand	12	120	28	38 x 122	330	8" Polyolefin 5" Rubber Swivel	197 x 38 x 41

Rotates in Place (RIP) to reduce turning radius in tight situations

HR Standard RIP Mobile Ladder Stands

• Standard 60° climbing angle
• 15" platform depth
• Steps are 7-1/2" deep, non-slip, raised, perforated, dimpled tread pattern

SHR RIP Safety Angle Mobile Ladder Stands

• 50° safety angle allows user to face forward while descending
• 19” platform depth
• Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern

Details

• Rotates in Place (RIP) to reduce turning radius in tight situations
• 42” high handrail
• 1" x 16 ga. round tube construction
• Heavy duty all-welded construction
• Positive floor locking trip step mechanism
• Ships knocked down with minimal assembly required
• Durable blue powder coat finish

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 400 lbs (one person only)

Optional Features:

• Diamond Channel Grating Treads
• Front or Side Walk-through (comes with safety chains or gate)
• Fold-down handrail
• Extended Platform
• Tool Tray
• Stainless Steel
• Vertical Pickets
• Gates
• Kickplates

Parts:

CAS-5RSX-TS	WHL-8PO	COM-RP-2534
