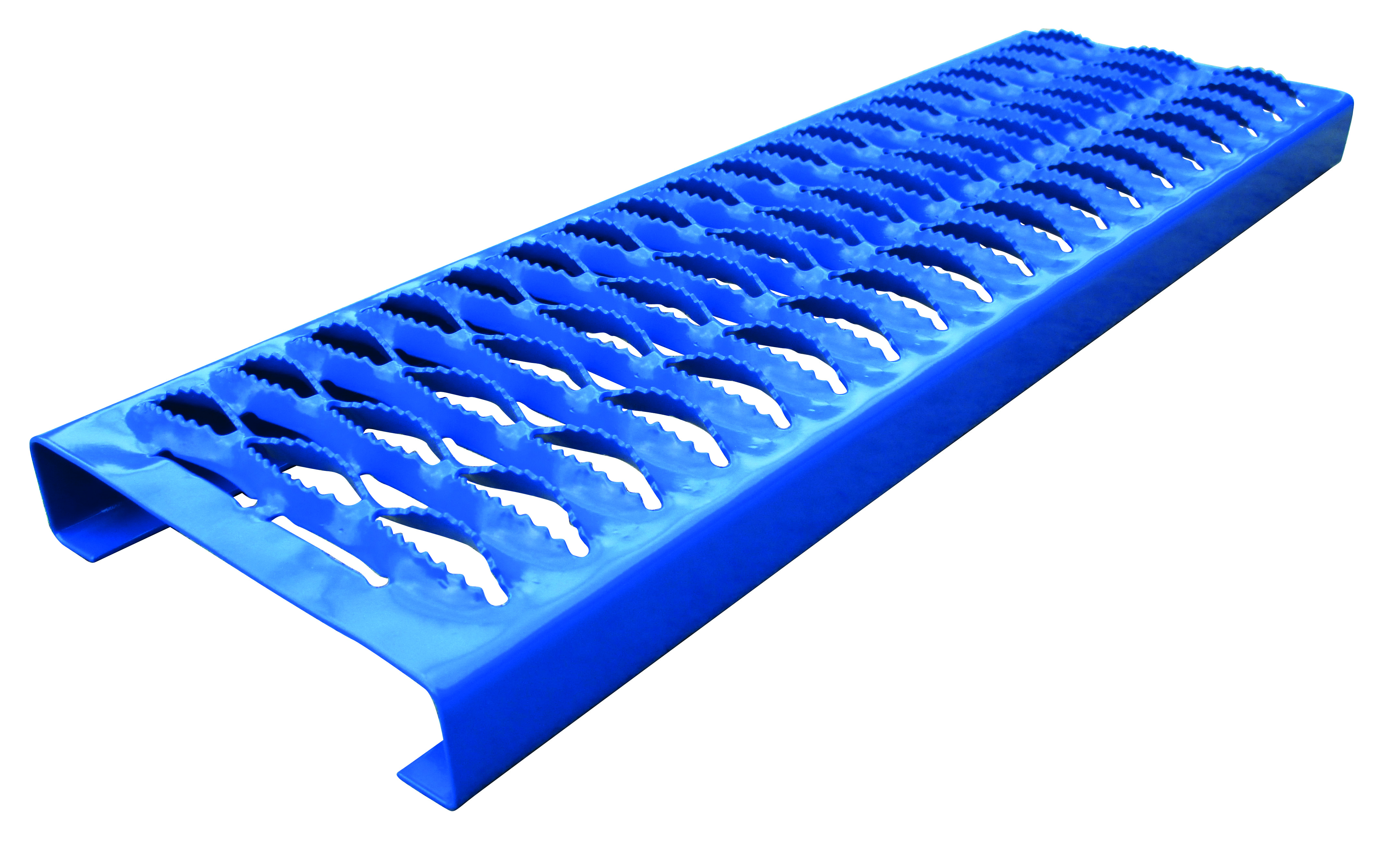

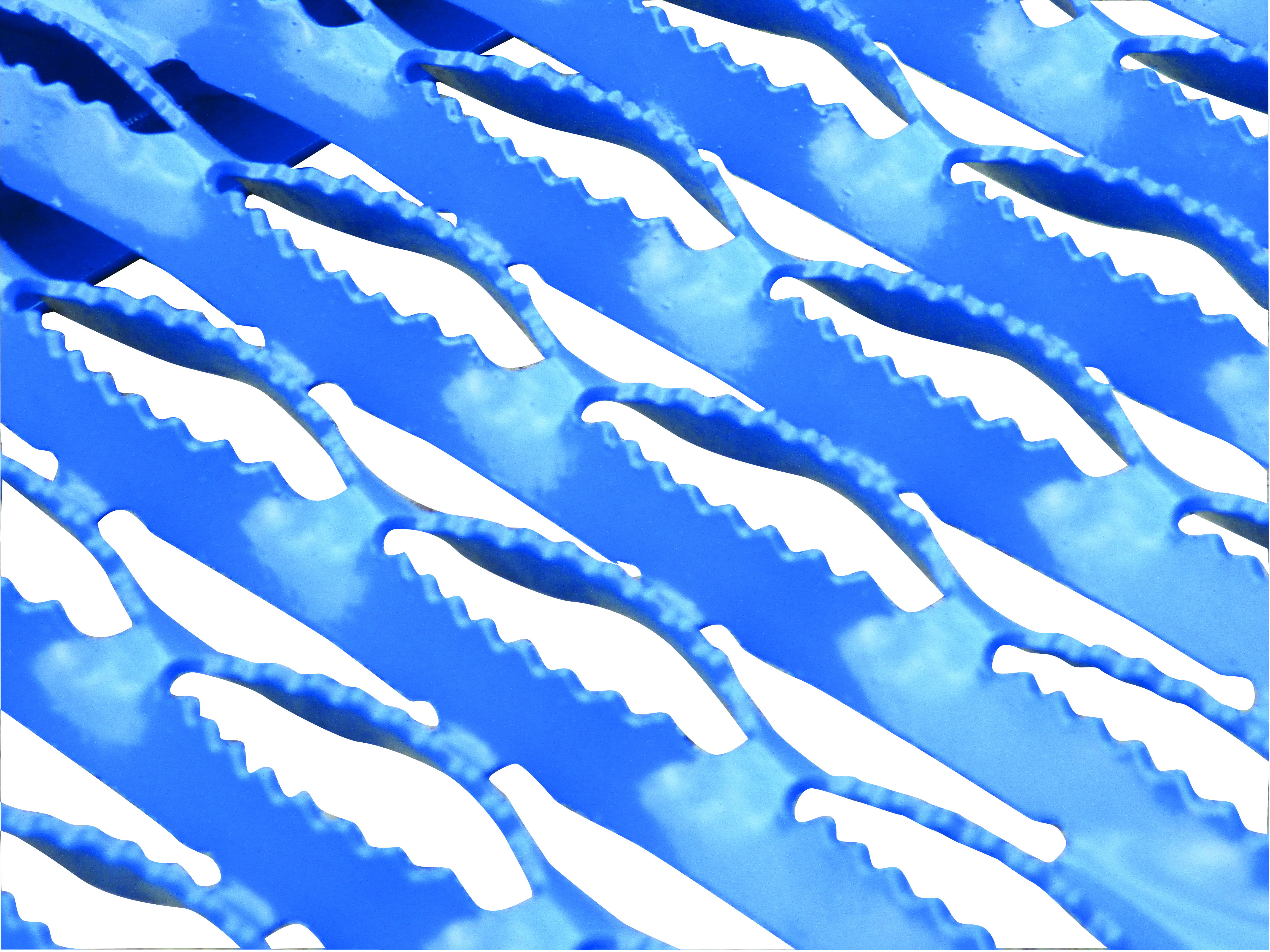

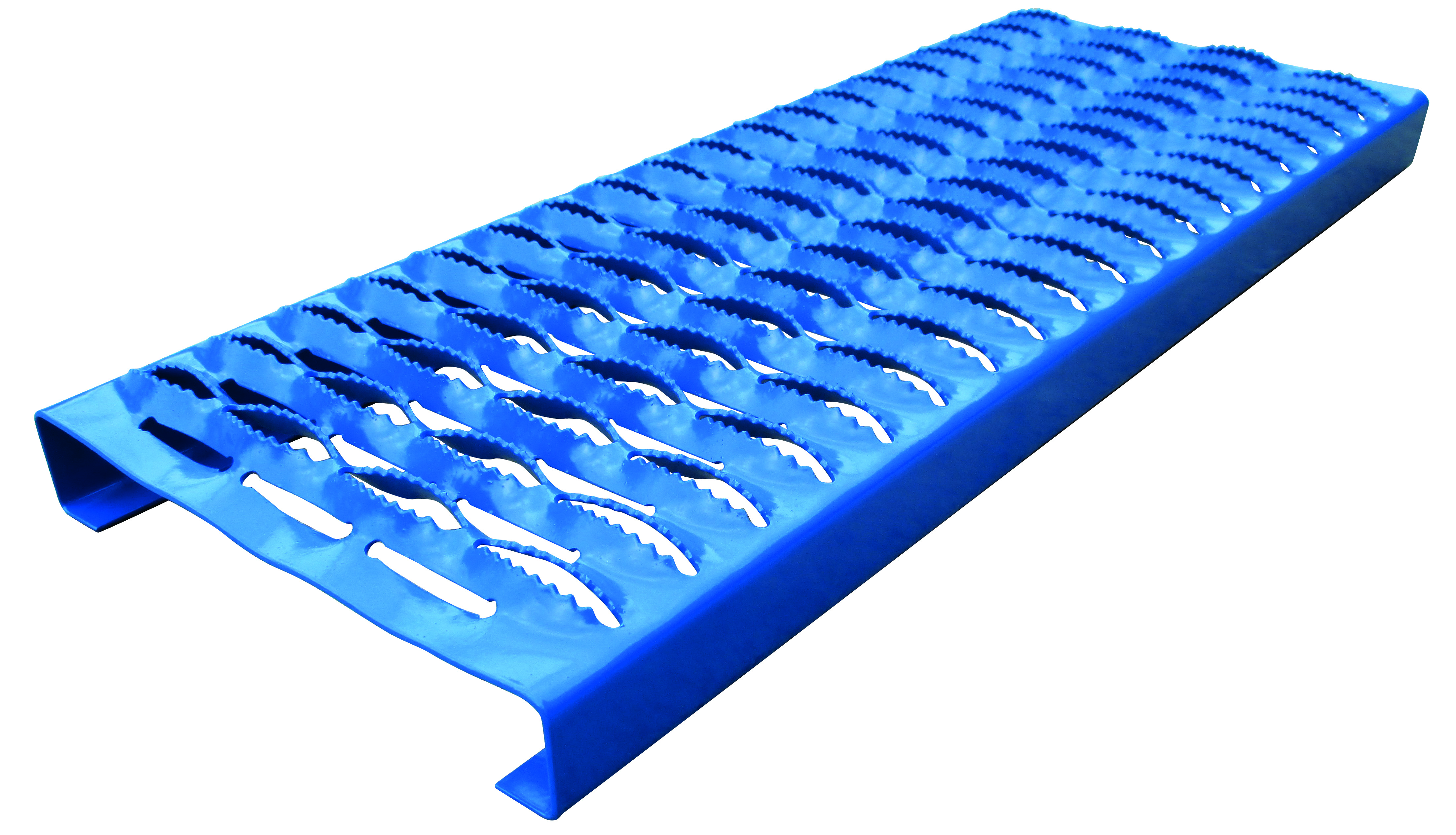

Diamond Channel Grating

• Superior slip resistance for outdoor or oily applications

Front, left, or right walk-through

• Allows for easy access to platforms and other raised surfaces
• Safety chains with trigger snap clips
• Side walk-through ladders must have an extended platform

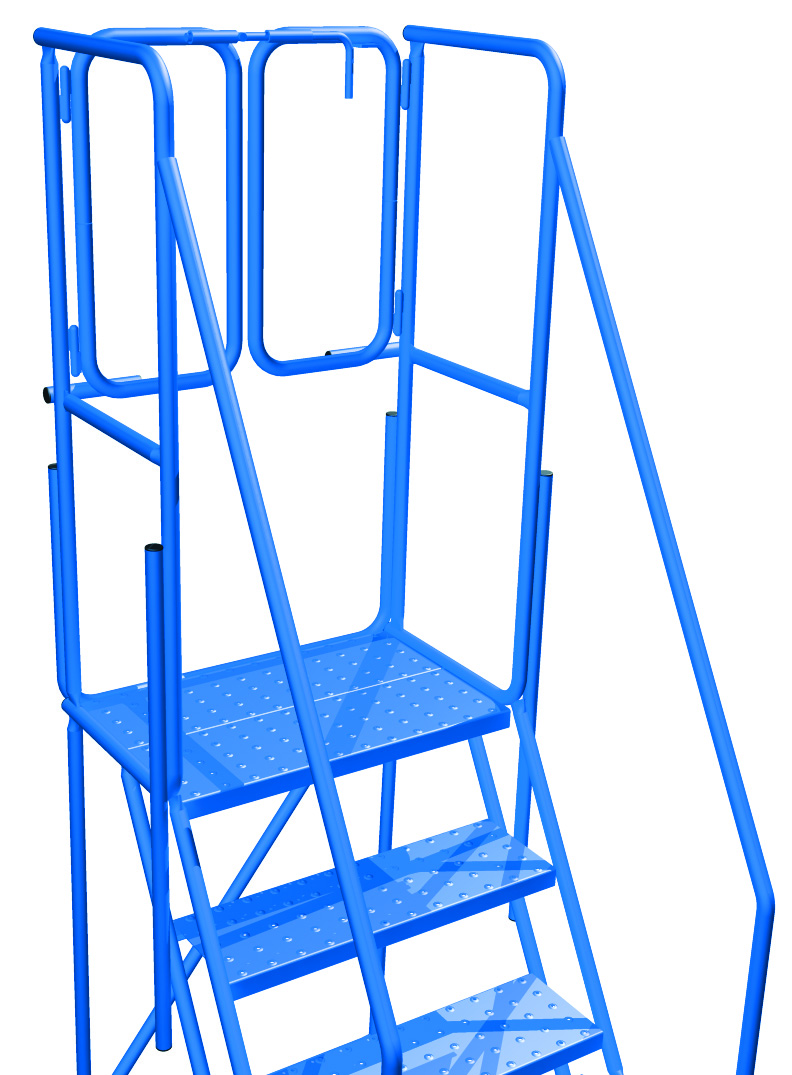

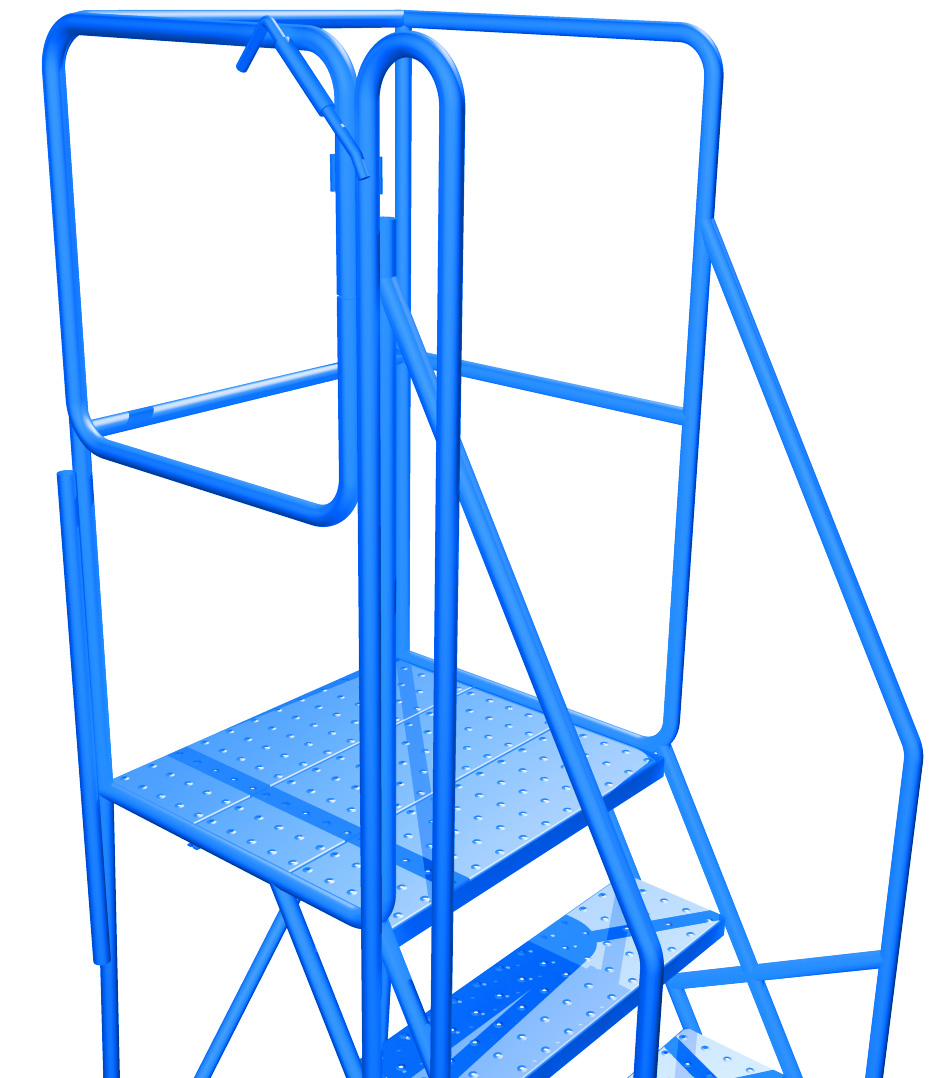

Gated Walk-through

• Allows for easy access to platforms and other raised surfaces
• Single or double gate options available
• Side walk-through must ladders have an extended platform

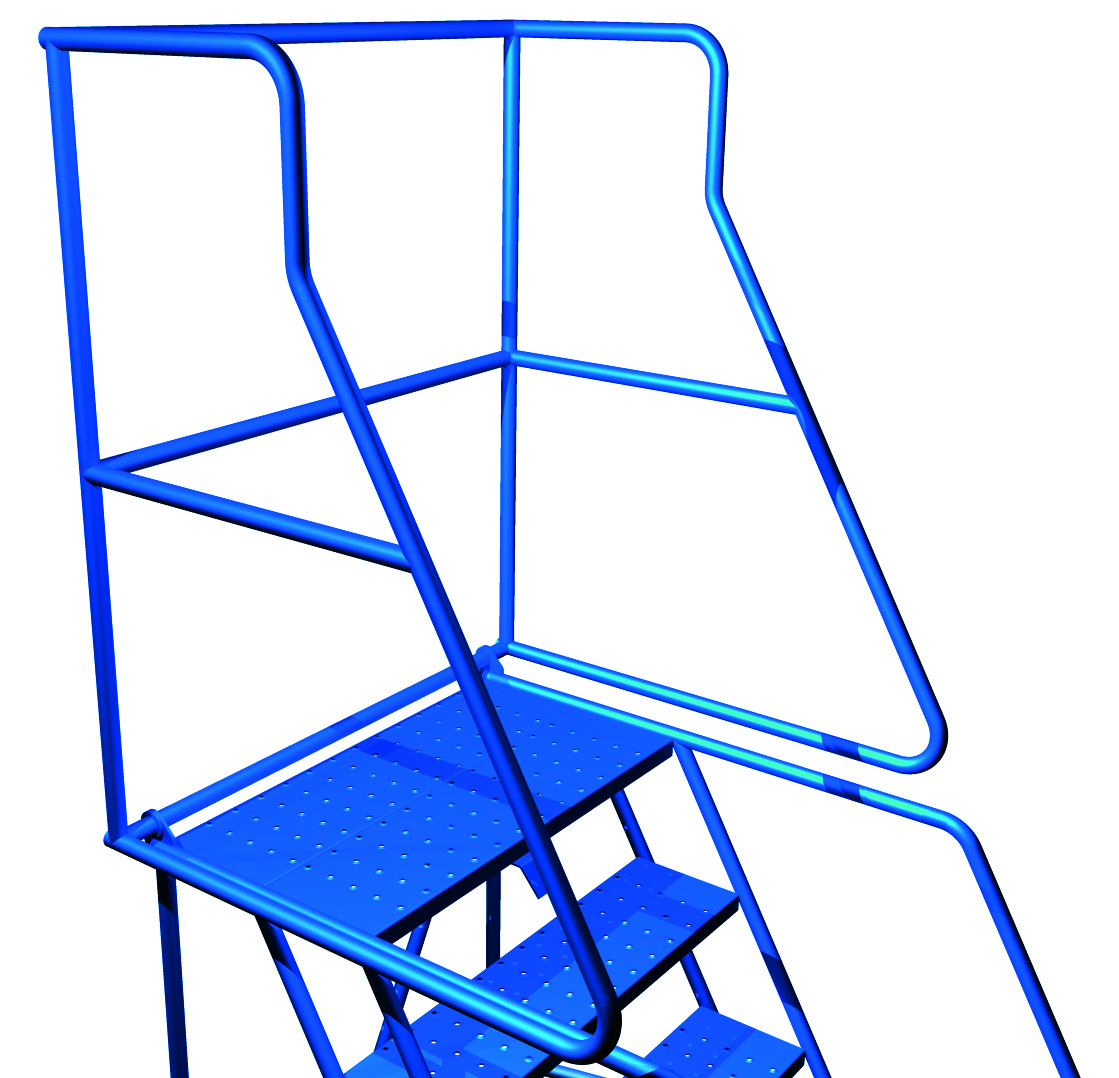

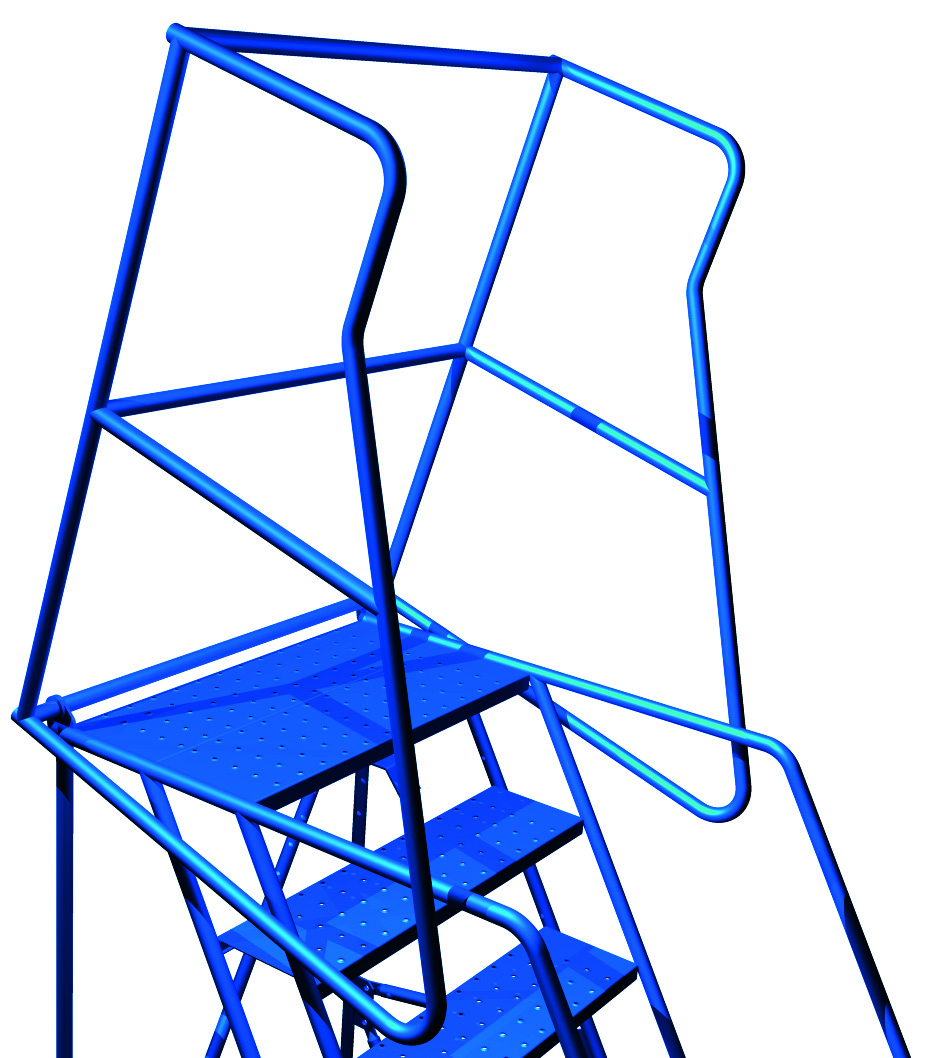

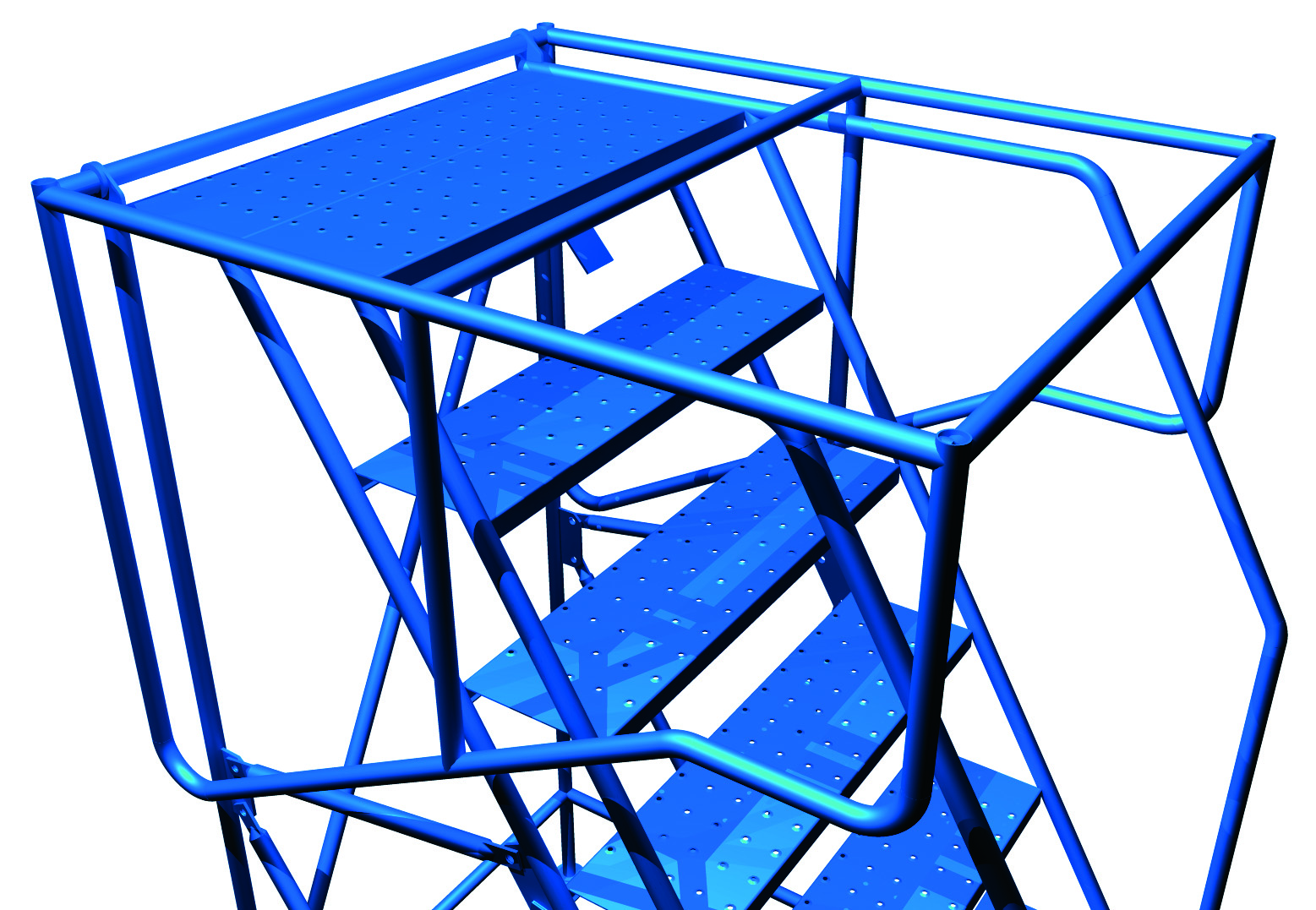

Fold-down handrail

• Reduces overall height of the ladder when not in use
• Allows ladders to be pushed through shorter doorways and/or stored in smaller spaces

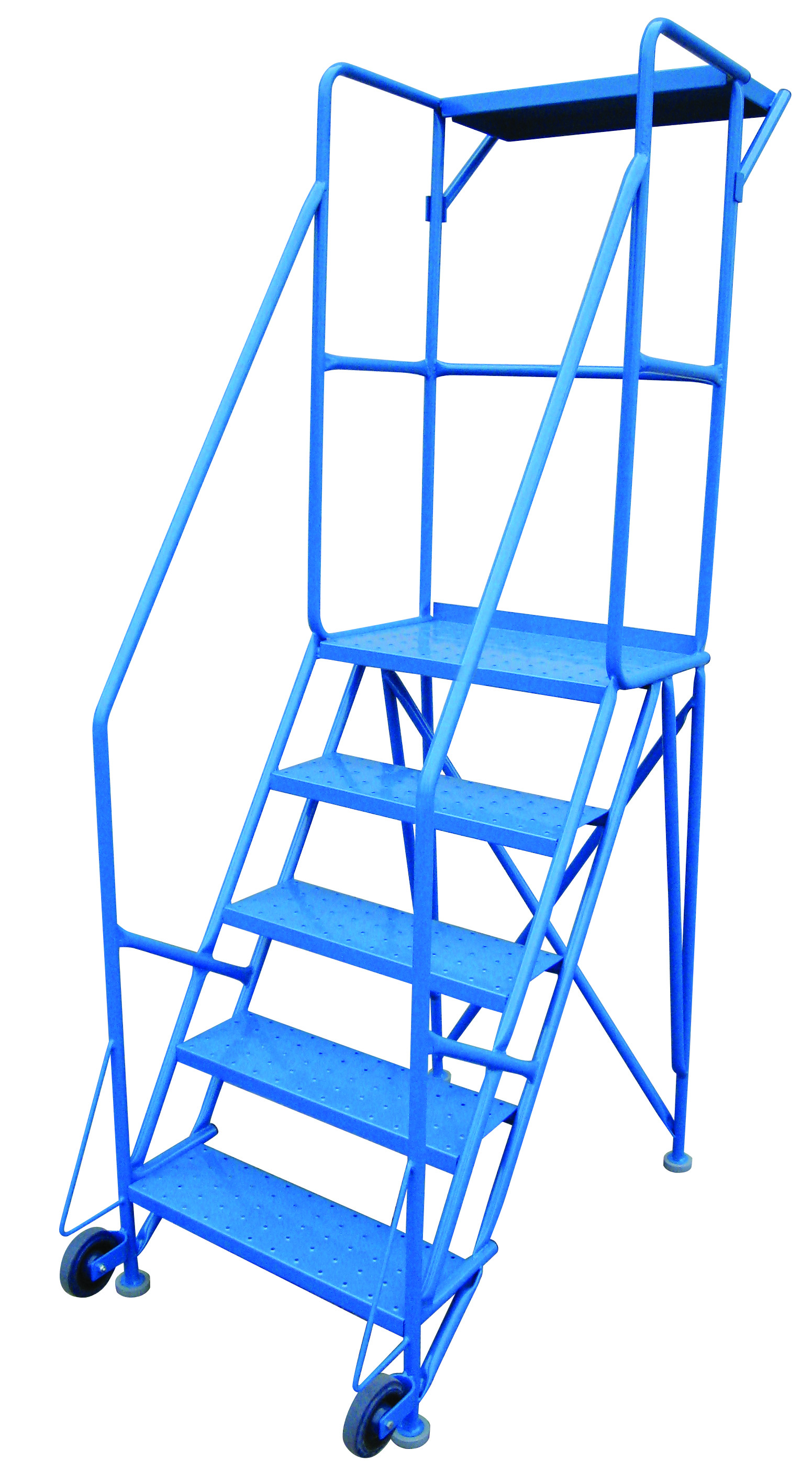

Extended Platform

• Additional space for tools and equipment on the platform
• 50° or SH-Safety Angle ladders have 28.5” or 38” extended platforms available
• 60° or H-series ladders have 22.5” or 30” extended platforms available
• Other sizes may be available with customization

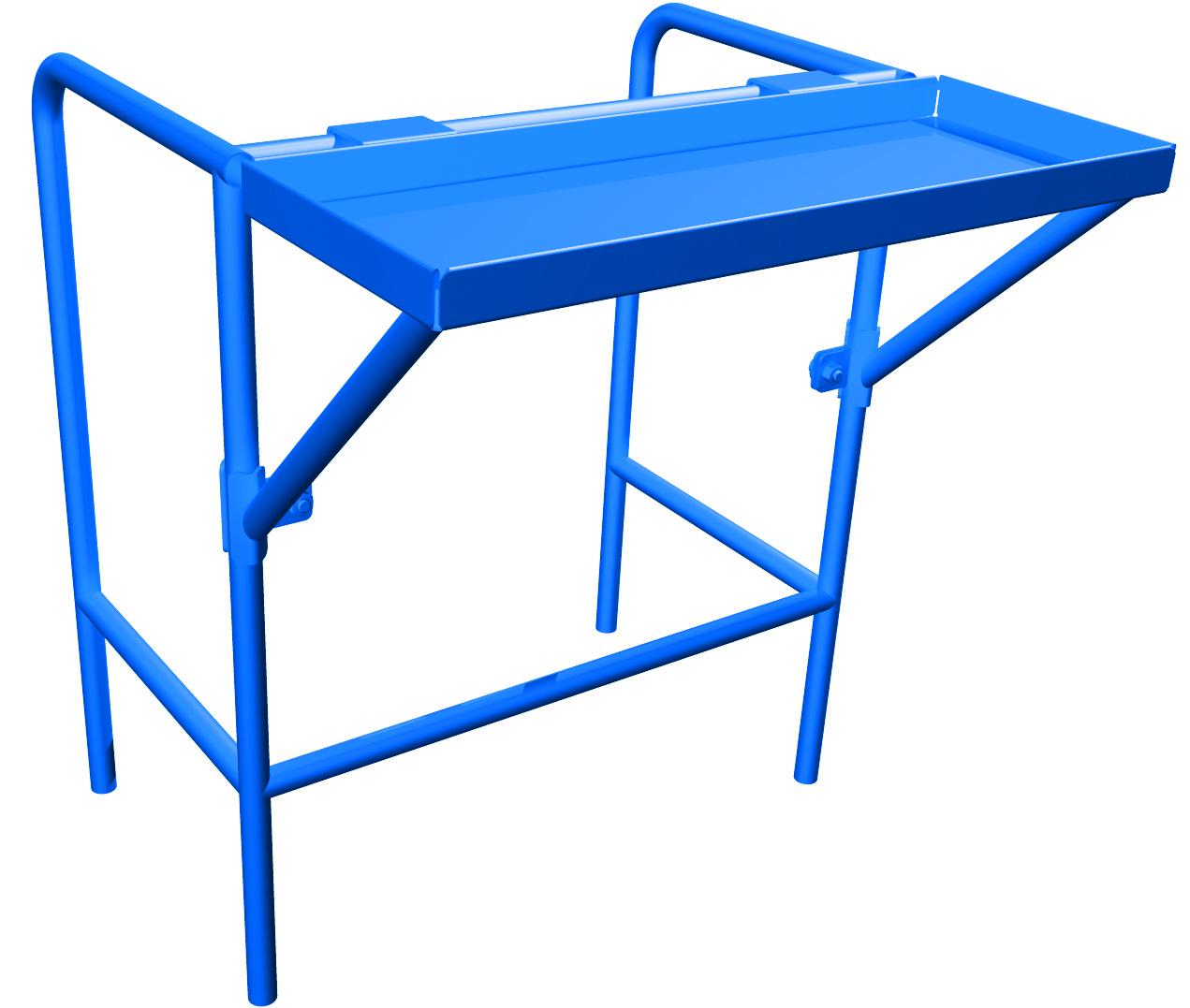

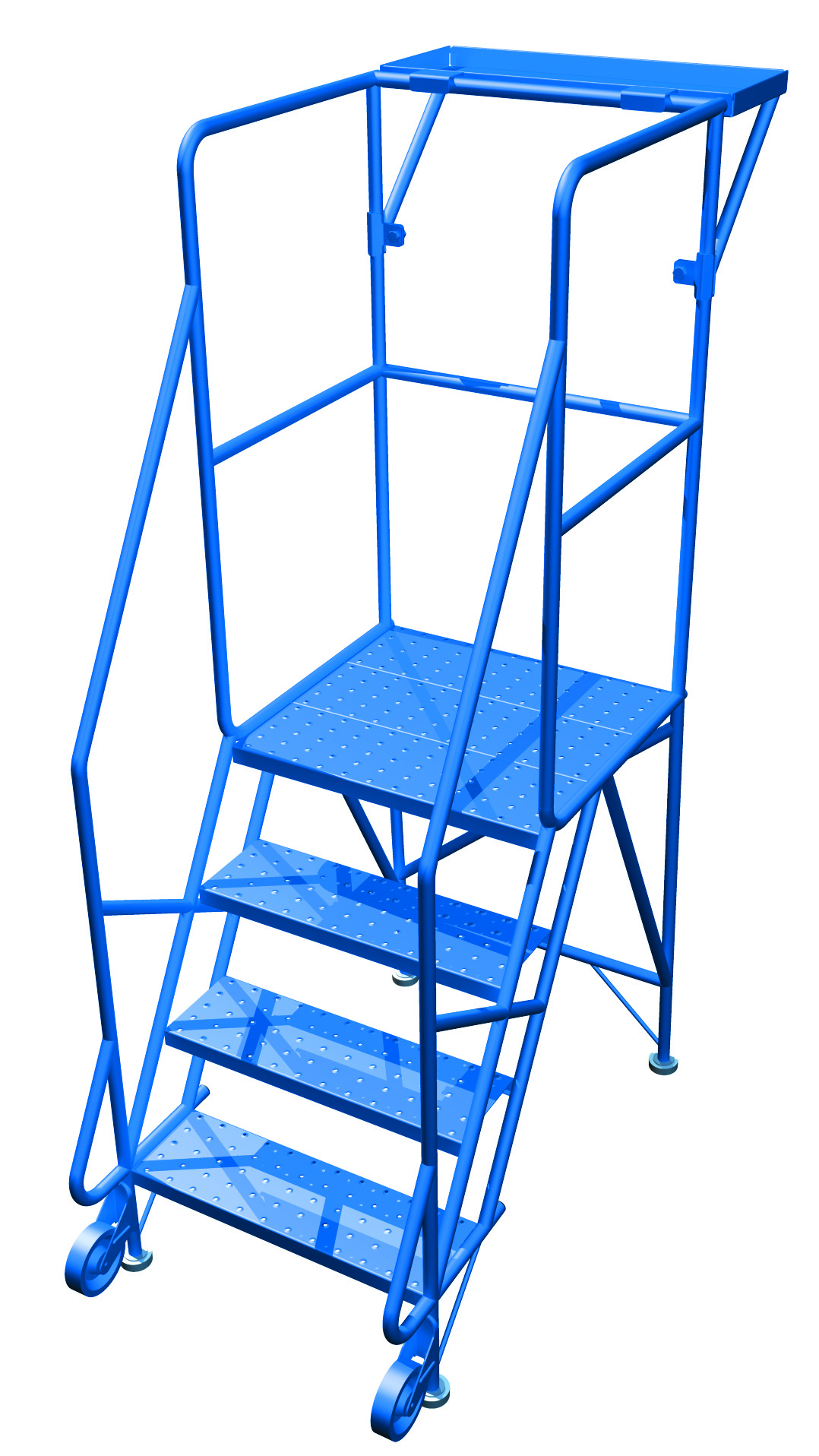

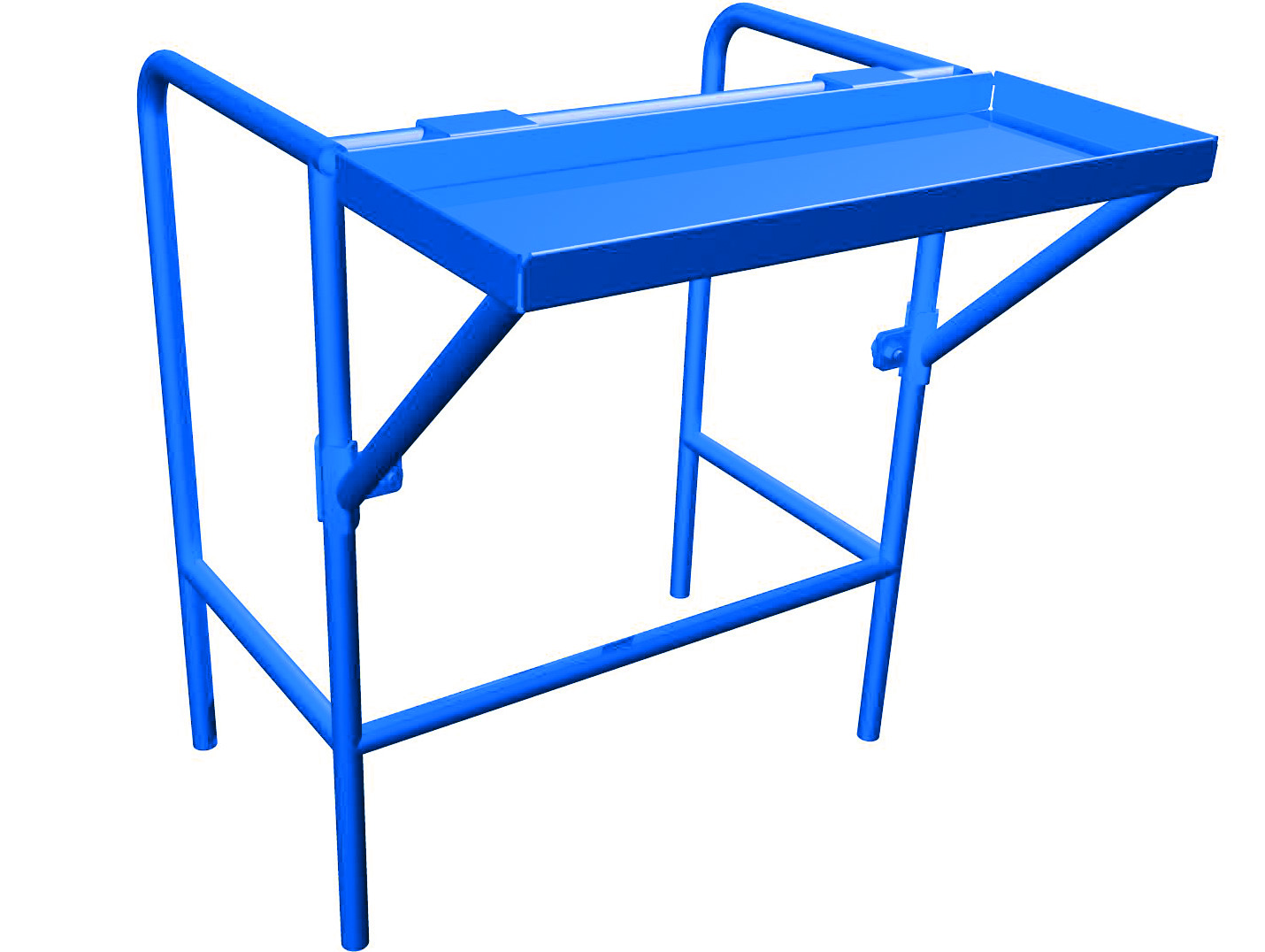

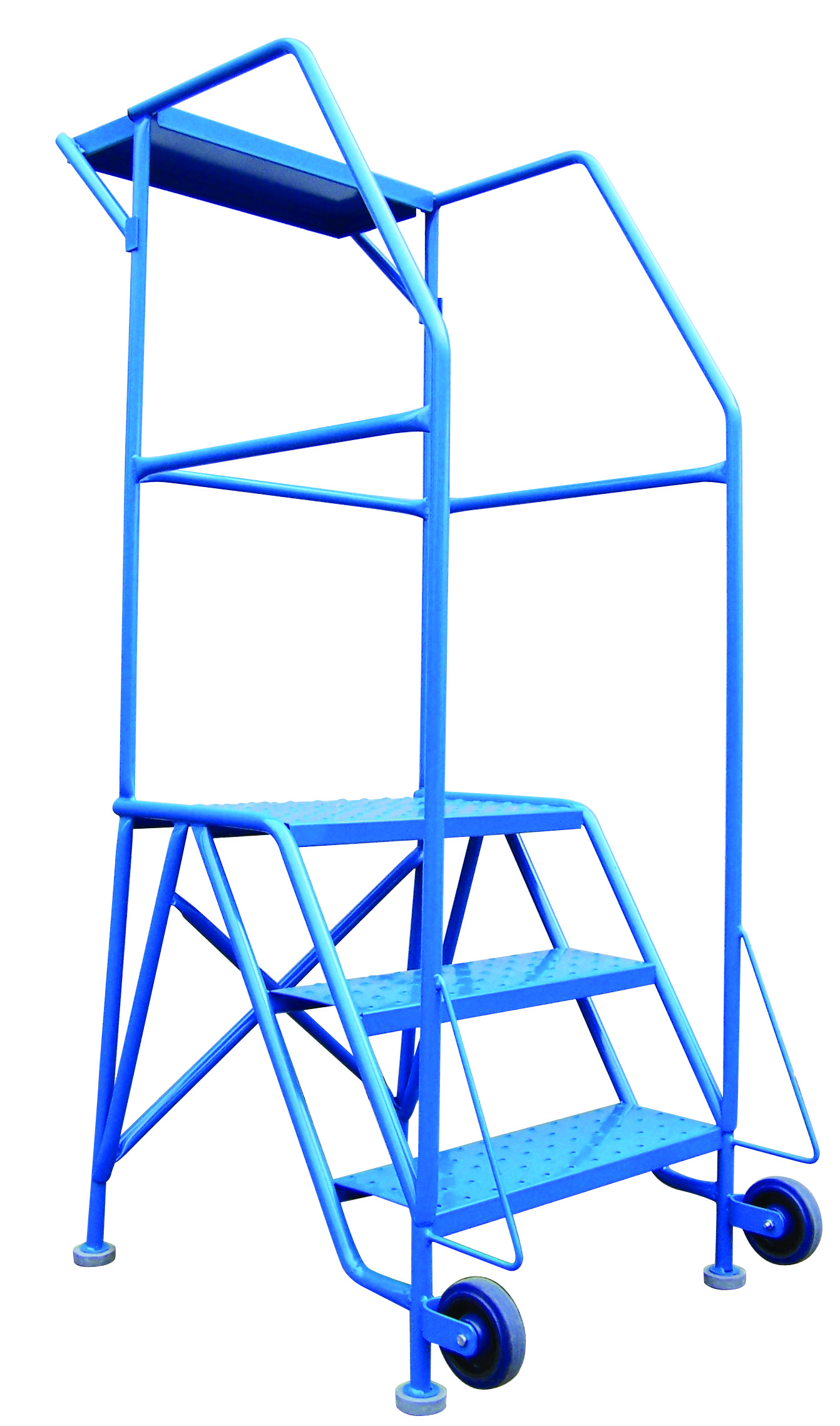

Tool Tray

• Removable work tray for additional working area
• Available on all ladders with handrails

Part Number	Tray Size (in.)	Capacity (lb.)	Weight (in.)	Shipping Size LxWxH (in.)
TT26	10x26	100	8	26x13x13
TT30	10x30	100	10	30x13x13
TT38	10x38	100	14	38x13x13

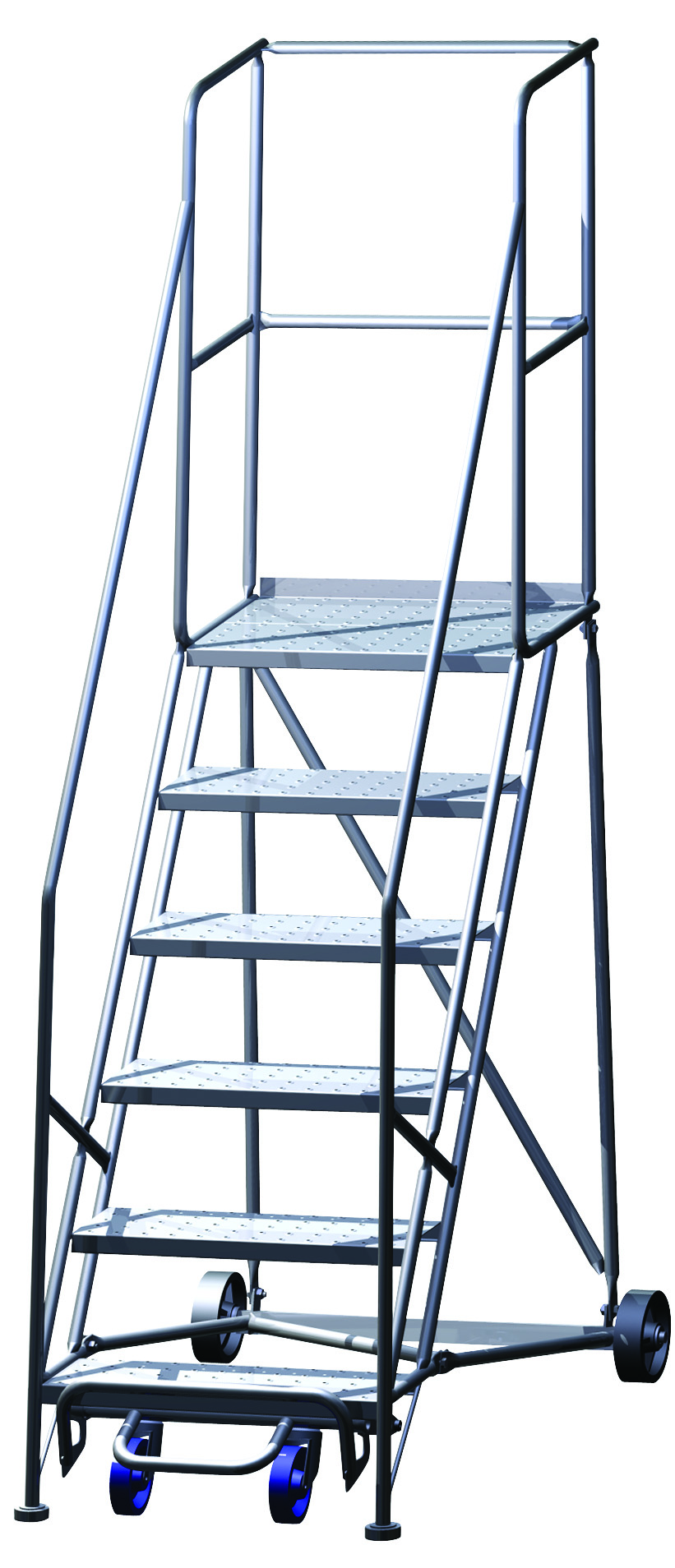

Stainless Steel

• Most ladders are available in Stainless Steel
• 1” stainless steel round tube construction
• 304 grade #4 brushed finish
• All components except casters and springs are fabricated from high quality stainless steel

In-Board Axle (IBA)

• Ladder wheels are inside ladder footprint to reduce width

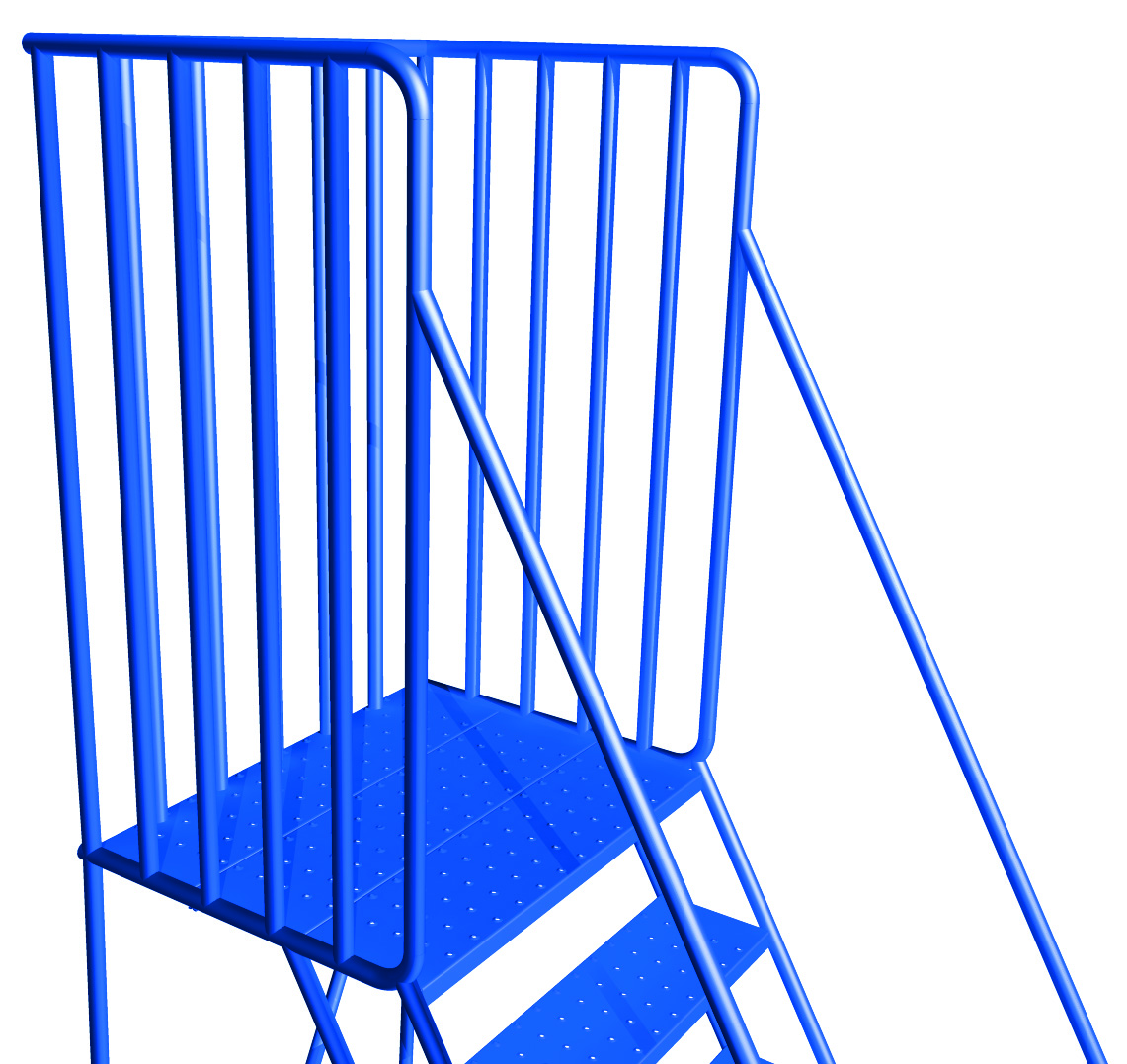

Vertical Pickets (VP)

• Prevents dangerous misuse of ladder

Colours

• Optional colours include Red, Safety Yellow, Traffic White, Black, Grey

Blue (Standard)	Red	Safety Yellow
Traffic White	Black	Grey

Toe Boards

• 5" high around platform to prevent items rolling off

Safety Chains

• Available at bottom step and/or platform
• Standard on walk-through ladders
